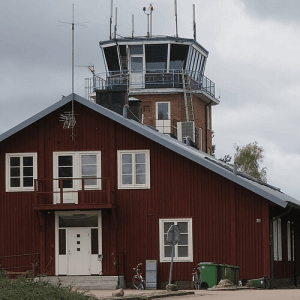

ESTL/QEL - LJUNGBYHED

VFR Entry/Exit point
LJUNG 583129N 0152309E
SNAVUDDEN 583037N 0153416E
SKEDA UDDE 581702N 0153410E
SPELLINGE 581706N 0152012E
VIBY 582235N 0151925E
ALVESTAD 582646N 0151945E

Reporting point
AMYNNINGEN 582640N 0153721E

Holding
NIL

CTR established during hours of TWR.
During the operational hours of MALMEN TWR:
SAAB Sector b is delegated to MALMEN TWR.

Remark
Arresting net beyond THR 01 and 19.
MIL marker boards 600 m from RWY ends.
RWY 01/19 rilled.

Electronic flashing approach system lights (EFAS) RWY 01 and 19.

FLIGHT PROCEDURES
1. Inbound IFR traffic within Östgöta TMA and Malmen CTR

Approach procedures
See pages ESCF 5–1 through ESCF 5–4
For AIP ESCF 5–1 and AIP ESCF 5–3, see AIP ESCF/QEI below

Holding patterns are established in accordance with page
ESSP 4–1.
See AIP ESCF/QEI below

2. Outbound IFR traffic within Östgöta TMA and
Malmen CTR

RWY 01/19
Cross RWY end at or below 800 ft QNH. Climb straight
ahead, no turn before 1300 ft QNH daylight/1800 ft QNH
darkness.

RWY 26
Climb on track 240° to distance 1 NM from ARP.

If a Locator is included in departure clearance the beacon is
a fly-over point until turn is initiated.

RVR 400 m or moor is required for departure runway 01/19
(EASA CS ADR-DSN.M.690).

3. Omnidirectional departure procedures
See  AD 2 ESCF 1-9 LINKÖPING/Malmen

-

RUNWAYS AND LANDING AIDS

RWY 11L
Dimension: Length 1998 m Width 40 m
SURFACE: Asphalt PCN 25/R/B/X/T
THR ELEV: 126 ft
TDZ ELEV: ---.0 ft
THR COORD: 560518.61N 0131133.02E

Transverse slope.
Last 1200 m of RWY non
cambered, single crossfall
from left to right.
Arresting net beyond THR 29

DECLARED DISTANCES
TORA: 1998 m
TODA: 1998 m
ASDA: 1998 m
LDA:    1998 m

APPROACH AND RUNWAY LIGHTNING
APCH LGT: -
VASIS: -
LED lights: -

RWY 29R
Dimension: Length 1998 m Width 40 m
SURFACE: Asphalt PCN 25/R/B/X/T
THR ELEV: 139 ft
TDZ ELEV: ---.0 ft
THR COORD: 560453.31N 0131319.36E

DECLARED DISTANCES
TORA: 1998 m
TODA: 1998 m
ASDA: 1998 m
LDA:    1998 m

APPROACH AND RUNWAY LIGHTNING
APCH LGT: -
VASIS: -
LED lights: -

RWY 11R
Dimension: Length 1886 m Width 40 m
SURFACE: CONC_ASPH PCN 25/R/B/X/T
THR ELEV: 123 ft
TDZ ELEV: ---.0 ft
THR COORD: 560511.45N 0131052.36E

DECLARED DISTANCES
TORA: 1986 m
TODA: 1986 m
ASDA: 1986 m
LDA:    1986 m

APPROACH AND RUNWAY LIGHTNING
APCH LGT: -
VASIS: APAPI
LED lights: -

RWY 29L
Dimension: Length 1886 m Width 40 m
SURFACE: Asphalt PCN 48 F/B/X/T
THR ELEV: 136.1 ft
TDZ ELEV:  136.1 ft
THR COORD: 560445.46N 0131237.35E

DECLARED DISTANCES
TORA: 1870 m
TODA: 1870 m
ASDA: 1910 m
LDA:    1870 m

APPROACH AND RUNWAY LIGHTNING
APCH LGT: CALVERT CAT I 750 M  LIL/LIH
VASIS: PAPI
LED lights: -

REMARKS :
RWY 29L: APAPI
Left side/2.86° (back-up)

APRON SURFACE AND STRENGTH
Apron 1 CONC PCN -
Apron 2 CONC PCN -
Apron 3 CONC PCN -
Apron 4 CONC PCN -
Apron 5 CONC PCN -

TWY WIDTH, SURFACE AND STRENGTH
TWY A 8 m CONC PCN -
TWY B 10 m CONC_ASPH PCN -
TWY C 8 m CONC PCN -
TWY D 10 m CONC PCN -
TWY E 10 m CONC PCN -
TWY F 10 m CONC PCN -
TWY H 8 m ASPH PCN -
TWY J 4.8 m ASPH PCN -
TWY K 8 m CONC PCN -
TWY Y 8 m CONC_ASPH PCN -

ATS
Ref AIP SUP/NOTAM

ATS ARO
As ATS

AD Admin
MON-FRI 0700-1500 (0600-1400)

AD Operating hours
MON-FRI 0700-1500 (0600-1400)

Fuel
-

Handing
-

De-Icing
-

Customs
-

Security
-

IFR/VFR. Max RWY ref code 2C
